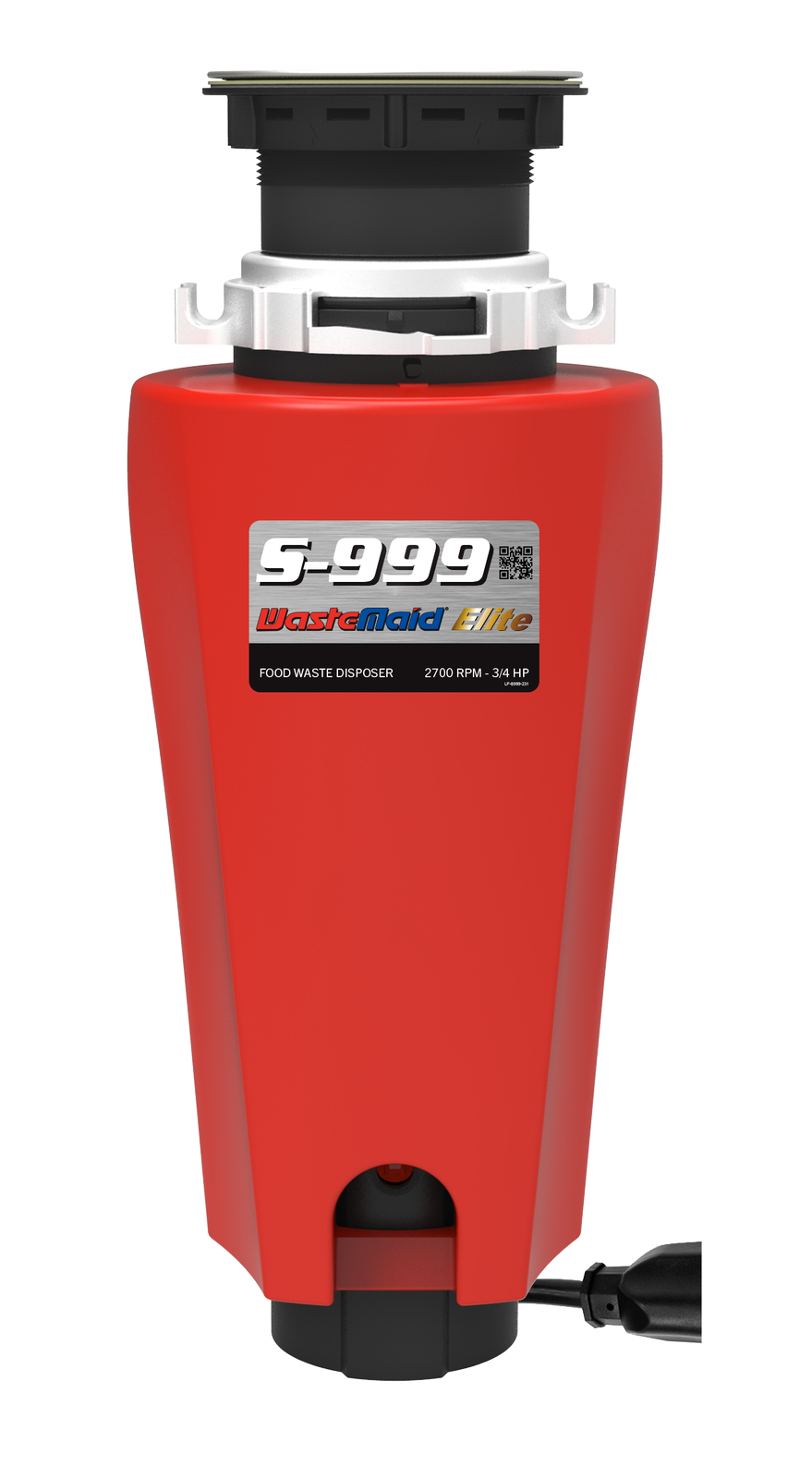

Waste Maid 'Elite S-Series' S-999AS Waste Disposal Unit
New 'Elite S-SERIES' - Continuous Feed with Improved Motor
with Built-in Push Button Air Switch
Summary
* Continuous Feed Model - Food can continually be added during the grinding process.
* Built-in Push Button Air Switch
* Fits all sinks with a standard 90mm waste hole
* Easy & Fast to Install - features 'Speed Master Mounting'
* 3/4 HP, 490 watts
* Corrosion Proof - carries 'lifetime' warranty against failure due to corrosion
* Compact & Lightweight - design allows for installation where undercounter space is limited
* Removable Splash Guard - ideal for easy cleaning & replacement
* Permanent Magnet Motors - motors offer maximum torque instantly with jam cutting power
* Bio Shield - for Odour Protection
* Torque Master Ultimate' - Advanced Grinding System
* Full Hush-Shield Shell sound reducing technology.
* Stainless Steel Grinding Components
* Attached Power cord (80cm length) with UK 3-Pin Plug (13amp)
* Includes: 'Sink Flange Assembly Kit'
* Includes: 'WasteMaid Plug / Stopper (Black)'
* Includes: 'WasteMaid Rubber Splashguard'
3-Year UK Warranty (Domestic Use)
Product Description
The WasteMaid 'Elite' S-999AS is the Deluxe Model - A 3/4 HP Motor is included along with Cast Stainless Steel Impellors and a one-piece grind ring to produce the absolute finest grind. Full sound insulation for a much quieter operation.
It is supplied with a 3 Years UK Warranty and as with all WasteMaid models has a lifetime guarantee against failure due to corrosion.
Includes a Built-in Push Button Air Switch
Technical Details
HORSEPOWER - 0.75HP
MOTOR SPEED - 2700RPM
VOLTAGE - 220-240V
WATTAGE - 550
AMPS - 3.25
CYCLES - 50/60
MOTOR TYPE - Permanent Magnet
BEARINGS - Permanently Lubricated sleeve Type
SPLASH GUARD - Removable with Bio-Shield Protection
GRINDING SYSTEM - Torque Master Ultimate
GRIND RING - Stainless Steel
SWIVEL IMPELLERS - Stamped Stainless Steel
BALANCED TURNTABLE - Stainless Steel
BALANCED ARMATURE SHAFT - Yes
HOPPER - Corrosion Proof
DRAIN HOUSING - Corrosion Proof
APPLIANCE PROTECTOR - Manual Reset
SINK FLANGE - Stainless Steel
MOUNTING ASSEMBLY - Speed Master (Threaded)
SOUND SHELL - Full Hush - Sound Shield Shell
POWER CABLE LENGTH - 80cm
DISHWASHER CONNECTION - Yes
UNIT WEIGHT - 5.7kg
LIFETIME CORROSION WARRANTY - Yes
WARRANTY - 3-Year replacement

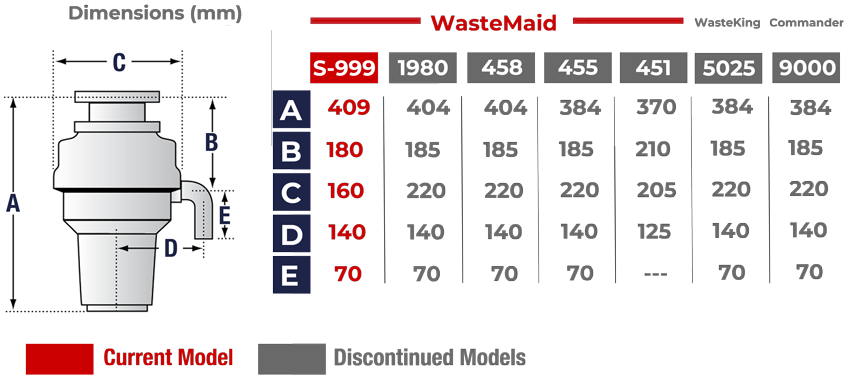

Dimensions of WasteMaid Elite S-999AS
Replacing an Existing WasteMaid Model
The Elite S-999AS is the replacement for the discontinued WasteMaid - 450, 451, 455, 458, 1980, 1980-AS / Commander 9000 / Waste King 5025
(See 'Replacing a WasteMaid' tab above)
Installation
A detailed installation guide is included in the box.
This is also available to download from the 'Manual / Instructions' tab above.
CERAMIC SINKS - If fitting to a ceramic sink - you may require an additional 'Extended Flange' to replace the 'Standard Flange' that is supplied with the disposer - more details here
