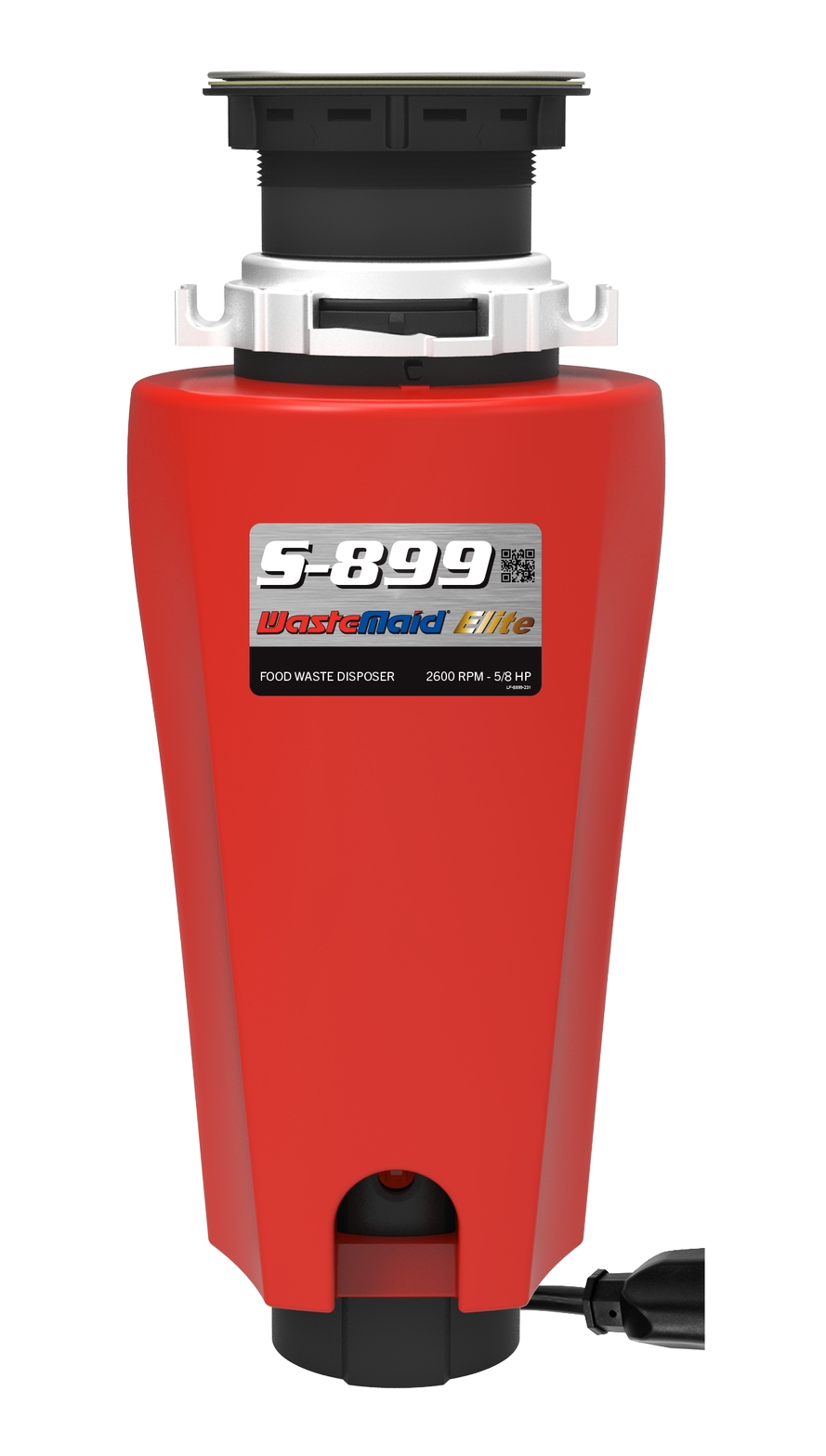

Waste Maid 'Elite S-Series' S-899AS Waste Disposal Unit
New 'Elite S-SERIES' - Continuous Feed with Improved Motor
with Built-in Push Button Air Switch
Summary
* Continuous Feed Model - Food can continually be added during the grinding process.
* Built-in Push Button Air Switch
* Fits all sinks with a standard 90mm waste hole
* Easy & Fast to Install - features 'Speed Master Mounting'
* 5/8 HP, 490 watts
* Corrosion Proof - carries 'lifetime' warranty against failure due to corrosion
* Compact & Lightweight - design allows for installation where undercounter space is limited
* Removable Splash Guard - ideal for easy cleaning & replacement
* Permanent Magnet Motors - motors offer maximum torque instantly with jam cutting power
* Bio Shield - for Odour Protection
* Torque Master Ultimate' - Advanced Grinding System
* Full Hush-Shield Shell sound reducing technology.
* Stainless Steel Grinding Components
* Attached Power cord (80cm length) with UK 3-Pin Plug (13amp)
* Includes: 'Sink Flange Assembly Kit'
* Includes: 'WasteMaid Plug / Stopper (Black)'
* Includes: 'WasteMaid Rubber Splashguard'
3-Year UK Warranty (Domestic Use)
Product Description
The WasteMaid 'Elite' S-899AS is the mid to top model in the range. Heavy-Duty Model - As the classification suggests it is produced to meet demands for a heavy workload.
Like the Deluxe model it too has Cast Stainless impellors, one-piece grind ring which produces a fine grind. The S-899AS has 'Full Sound Insulation' for quiet operation.
It is supplied with a 3 Year UK Warranty and as with all WasteMaid models has a lifetime guarantee against failure due to corrosion.
Includes a Built-in Push Button Air Switch
Technical Details
HORSEPOWER - 0.58HP
MOTOR SPEED - 2600RPM
VOLTAGE - 220-240V
WATTAGE - 490
AMPS - 2.25
CYCLES - 50/60
MOTOR TYPE - Permanent Magnet
BEARINGS - Permanently Lubricated sleeve Type
SPLASH GUARD - Removable with Bio-Shield Protection
GRINDING SYSTEM - Torque Master Ultimate
GRIND RING - Stainless Steel
SWIVEL IMPELLERS - Stamped Stainless Steel
BALANCED TURNTABLE - Stainless Steel
BALANCED ARMATURE SHAFT - Yes
HOPPER - Corrosion Proof
DRAIN HOUSING - Corrosion Proof
APPLIANCE PROTECTOR - Manual Reset
SINK FLANGE - Stainless Steel
MOUNTING ASSEMBLY - Speed Master (Threaded)
SOUND SHELL - Full Hush - Sound Shield Shell
POWER CABLE LENGTH - 80cm
DISHWASHER CONNECTION - Yes
UNIT WEIGHT - 4.96kg
LIFETIME CORROSION WARRANTY - Yes
WARRANTY - 3 - Year replacement

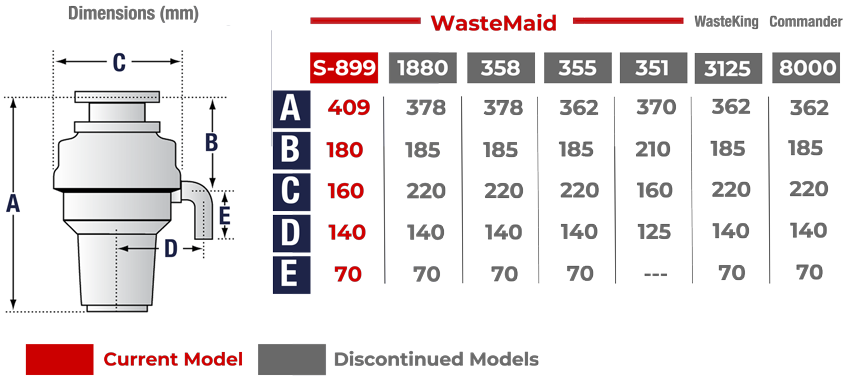

Dimensions of WasteMaid Elite S-899AS
Replacing an Existing WasteMaid Model
The Elite S-899AS is the replacement for the discontinued WasteMaid - 350, 351, 355, 358, 1880, 1880-AS / Commander 8000 / Waste King 3125
(See 'Replacing a WasteMaid' tab above)
Installation
A detailed installation guide is included in the box.
This is also available to download from the 'Manual / Instructions' tab above.
CERAMIC SINKS - If fitting to a ceramic sink - you may require an additional 'Extended Flange' to replace the 'Standard Flange' that is supplied with the disposer - more details here
